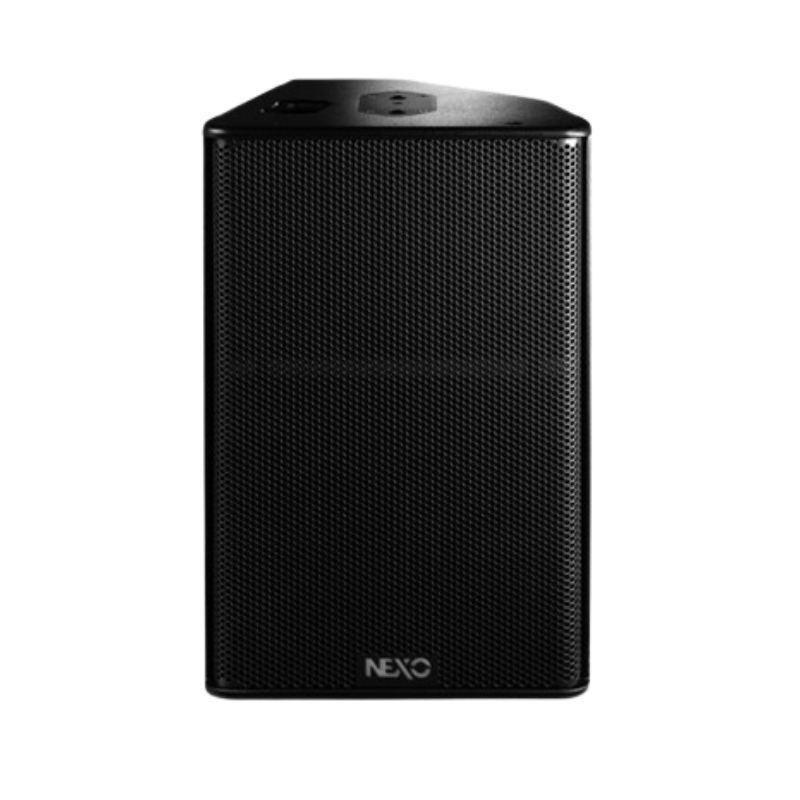

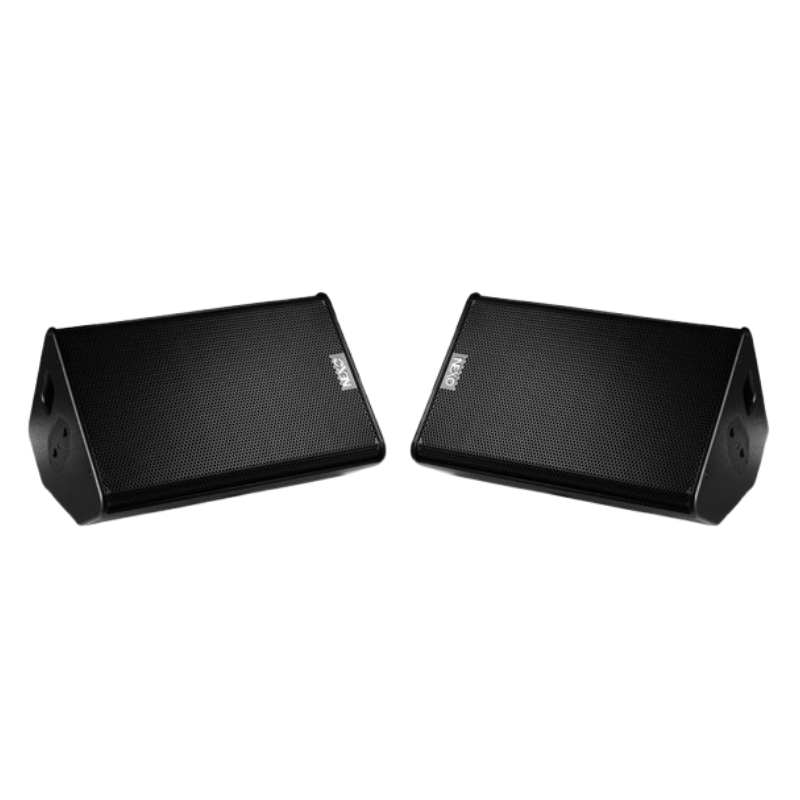

NEXO Stage Monitor Speaker PS15-R2 High-powered 15″
PS15-R2
A high power system capable of producing 136dB Peak SPL, the new PS15-R2 Loudspeaker can be safely driven with up to 2000 Watts of amplifier power. Controlled by the new DTD Controller, the PS15-R2 achieves high SPLs and wide bandwidth performance, despite being only half the weight and volume of common trapezoidal loudspeaker systems.
Specifications
| Frequency Response [a] | 50 Hz – 18 kHz ±3 dB |
| Usable Range @-6dB [a] | 47 Hz – 18 kHz |
| Sensitivity 1W @ 1m [b] | 102dB SPL Nominal, 99dB SPL Wideband |
| Height x Width x Depth | 675mm x 434mm x 368 mm |
| Nominal Peak SPL @ 1m [b] | 133 to 136 dB Peak |
| HF Dispersion [c] | 50° to 100° Hor. x 55° Vert. |
| Rotatable Horn | 4 positions |
| Directivity Q & DI [c] | Q : 16 Nominal DI : 12dB Nominal ( f > 1.5 kHz ) |
| Crossover Frequencies | 1.1 kHz Passive or Active (internally switchable) |
| Nominal Impedance | Passive : 8Ω or Active : LF: 8Ω & HF: 16Ω |
| Active Mode only available on NXAMP | |
| Recommended Amplifiers | Passive: 1000 to 2000 W / 8Ω |
| Active: (LF) 1000-2000W/8Ω (HF) 250-500W/16Ω |
Features
| Components | LF 1 x 15” (38 cm) long excursion Neodymium 8Ω driver |
| HF 1 x 2” throat, 3” Titanium diaphragm, driver + Low | |
| Distortion, Constant Directivity Asymmetrical Dispersion Horn | |
| Height x Width x Depth | 675mm x 434mm x 368 mm |
| (26.57” x 17.08” x 14.48”) | |
| Weight | 28 kg (62 lbs.) |
| Speakon Connectors | 2 x NL4MP Speakon 4 pole (switch passive to active inside |
| Construction | Baltic Birch Ply finished with textured black coating |
| Fittings | Handles 4 Metal recessed pockets |
| Front finish | Moulded dark grey metal grill |

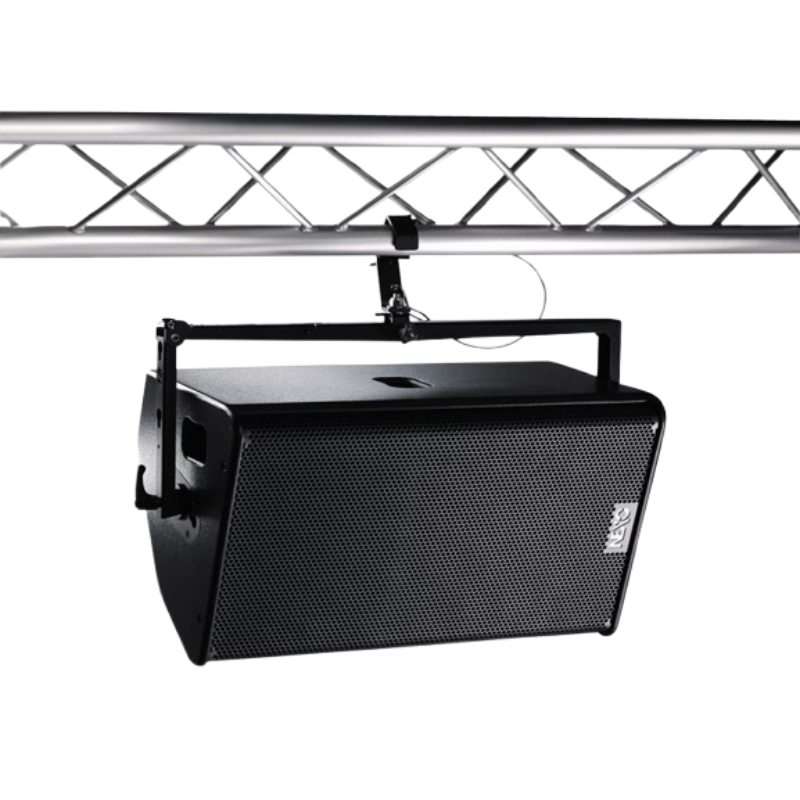

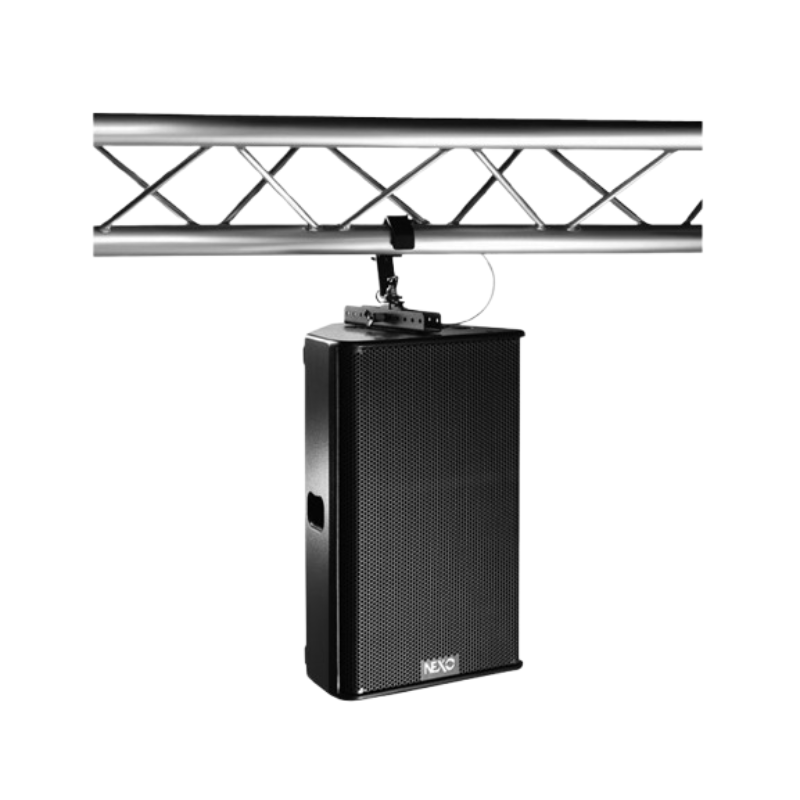

| Flying Points | Two plate connecting with external accessories |

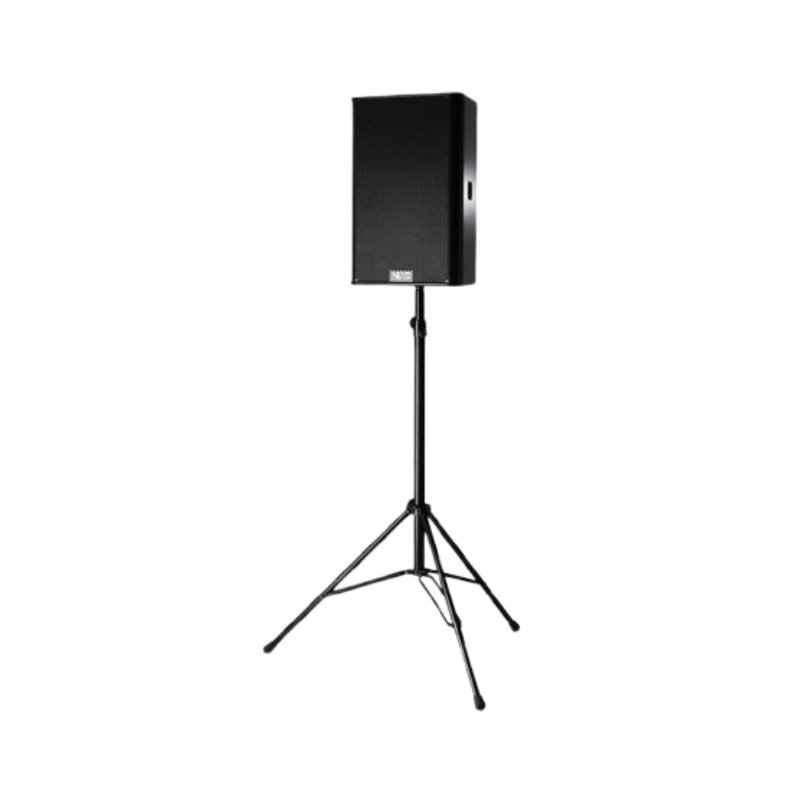

| Stand fittings | Built in Steel Stand Fitting, (35mm 1 3/8”) |
